Model

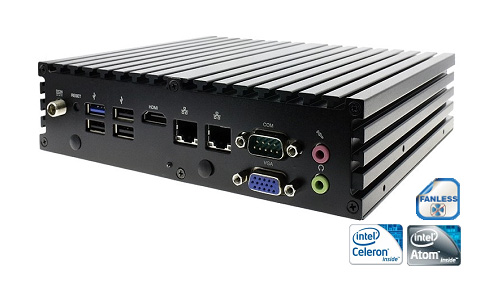

Smart T8000

CPU

Default Configuration

Onboard Intel® Celeron® Processor J1900 2.0GHz, up to 2.42GHz, 2M Cache, 64 Bit, Quad-Core

Memory

Default Configuration

4GB DDR3L SODIMM (1×SODIMM), Max. 8GB

Slots

PCI-Ex1

2 (Extensible special modules)

Mini-PCIe

2×full-size (one share with mSATA)

Sim

1

Storage

Default Configuration

1×500GB (With 24×7 operation)

Option

HDD (2.5"), SSD, mSATA

I/O Interface

Serial Port

1×RS-232/422/485 (rear);
Option increase: 4 or 8×RS-232/422/485 (front)

USB

3×USB 2.0, 1×USB 3.0 (rear)

SATA

1×SATA 2.0, 1×mSATA

LAN

2×10/100/1000M (rear);
Option increase: 4 or 8×10/100/1000M (front)

GPIO

8-Bit

Audio

1×Line-out, 1×Mic

K&M Port

USB

Display

Video Port

1×VGA, 1×HDMI

Video Memory

On board, DVMT

Monitoring

Watchdog

0~255 Sec

Power

Default Configuration

DC12V Input (Interface can be locked), with 90～240VAC, 12VDC/5A/60W power adapter

Mechanical Specifications

Cooling

Fanless

Construction

Aluminum & Steel

Mounting

Desktop, Wallmount

Dimensions (W×H×D)

185mm×48mm×165mm

Weight

2.4kg (w/o power adapter)

Environmental

Operating Temperature

0～60℃

Storage Temperature

-10～70℃

Relative Humidity

10～90% (non-condensing)

Certification

CE, FCC
