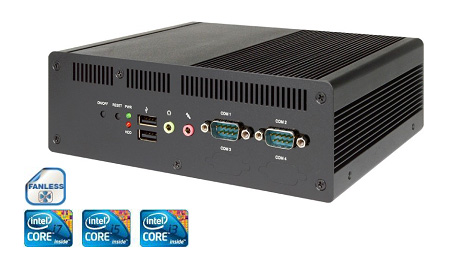

Smart T6007 Emedded IPC

◆Specifications


Model

Smart T6007

CPU

Default Configuration

Onboard Intel® Core™ i5-7200U 2.5GHz, up to 3.1GHz, 3M Cache, 64 Bit, Dual-Core or
Onboard Intel® Core™ i7-6500U 2.5GHz, up to 3.1GHz, 4M Cache, 64 Bit, Dual-Core

Memory

Default Configuration

4GB DDR4 SODIMM (2×SODIMM), Max. 32GB

Slots

Mini-PCIe

1×full-size(share with mSATA), 1×half-size

Storage

Default Configuration

1×500GB (With 24×7 operation)

Option

HDD (3.5″), SSD, mSATA

I/O Interface

Serial Port

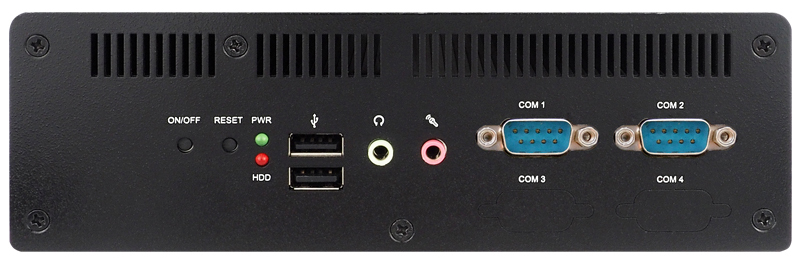

Standard: 1×RS-232/422/485, 1×RS-232 (front)
Option: 2×RS-232 (front), 1×RS-232 (rear)

USB

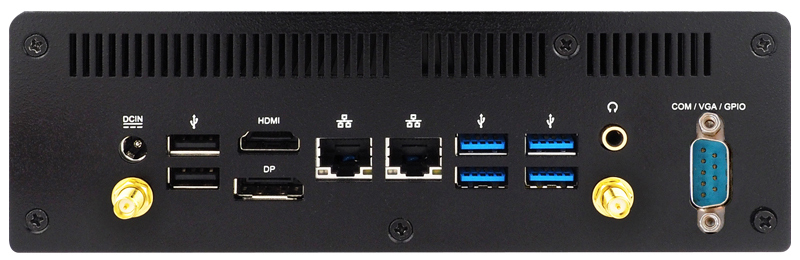

4×USB 2.0 (2 front, 2 rear), 4×USB 3.0 (rear)

SATA

1×SATA 3.0, 1×mSATA

LAN

2×10/100/1000M (rear)

GPIO

8-Bit (internal optional)

Audio

1×Line-Out, 1×Mic

K&M Port

USB

Display

Video Port

Standard: 1×HDMI, 1×DisplayPort

Video Memory

On board, DVMT

Monitoring

Watchdog

0~255 Sec

Power

Default Configuration

DC12V, with 90~240VAC, 12VDC/5A/60W power adapter

Mechanical Specifications

Cooling

Fanless

Construction

Aluminum & Steel

Mounting

Desktop, Wallmount

Dimensions (W×H×D)

193mm×62mm×142.4mm

Weight

2.2kg (w/o power adapter)

Environmental

Operating Temperature

0~50℃

Storage Temperature

-10~70℃

Relative Humidity

10~90% (non-condensing)

Certification

CE, FCC
