NPC-8000 Emedded IPC

◆Specifications


Model

NPC-8000

CPU

Default Configuration

Intel® Core™ i3 2.1GHz, 3M Cache, 64 Bit, Dual-Core

Option

PGA988 Socket support Intel® Core™ i3/i5/i7/Pentium®/Celeron® Mobile Processer

Chipest

Southbridge

Intel® QM77

Memory

Default Configuration

2GB DDR3 SODIMM (2×SODIMM, Support dual-channel)

Max.

16GB

Slots

PCI

1

PCI-Ex1

1

PCI-Ex4 (non-standard)

2 (with PCI-Ex1)

PC104+

1

Storage

Default Configuration

1×500GB (With 24×7 operation)

Option

CF, DOM, HDD (2.5"), SSD

I/O Interface

Serial Port

Standard: 2 (RS232/422/485 2.5KV isolation / 2KV surge protection)
Option increase: 4, 8(RS232/485 2.5KV2.5 KV isolation / 2KV surge protection, RS-422 option)
Option increase: 16,24(terminal, RS-232/485 2.5KV2.5 KV isolation / 2KV surge protection) Max: 26 Ports

Parallel Port

1 (built-in)

USB

Standard: 2×USB 2.0 (front), 2×USB 3.0 (rear);
2×USB 2.0 (internal), Internal USB Key Port

SATA

1×SATA 2.0, 2×SATA 3.0 (support RAID 0/1/5/10)

eSATA

1 (front,share with internal USB)

CF slot

TYPE-II

IDE DOM

40PIN

SATA DOM

2.5" Half SATA

USB DOM

1

Ethernet

Standard: 8×10/100/1000M
Option increase: 4, 8

GPIO

16bit

Audio

1×Line-out, 1×Mic-In

K&M Port

1×PS/2 Keyboard & Mouse (share with Y-Cable)

Display

Video Port

1×VGA, 2×HDMI

Video Memory

On board, DVMT

Monitoring

Watchdog

0~255 Sec

Power

Default Configuration

110~220V AC/DC

Option

24~48V AC/DC, 500ms Delay, Redundant Power

Others

Keyboard & Mouse

PS/2 Keyboard & 3D USB Mouse (Option)

Cooling

Fanless

Mounting

Desktop, Rackmount

Environmental

Operating Temperature

-10~55℃

Storage Temperature

-30~70℃

Relative Humidity

5~95% (non-condensing)

Dimensions (W×H×D)

2U: 483mm×89mm×330mm
3U: 483mm×133mm×330mm

Certification

FCC、CE

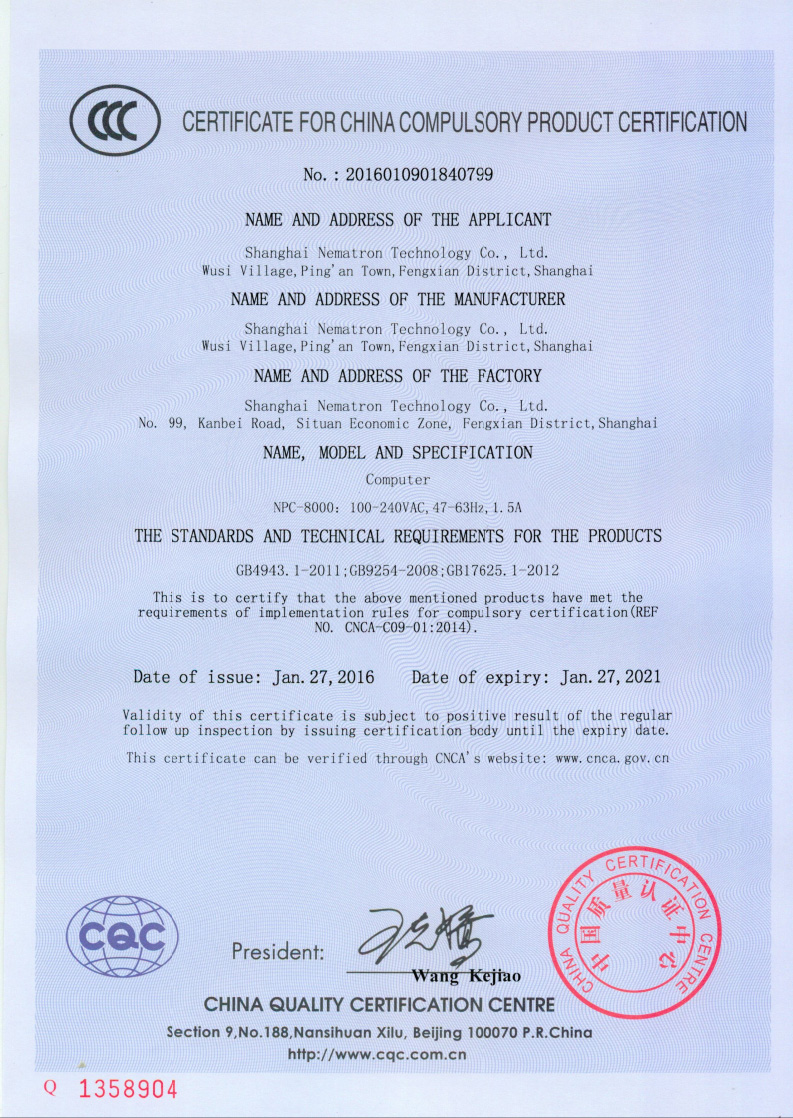

◆Certification
